COSMOSIL C18-AR-II
Reversed Phase / Polymeric C18
COSMOSIL 5C18-AR-II is a polymeric type of C18 phase. It shows exceptional stability and long lifetime at low pH. This phase is recommended for the separations requiring acidic mobile phase conditions. It also shows superior molecular shape selectivity to monomeric type C18 columns.
| COSMOSIL 5C18-AR-II | |
|---|---|
| USP code | L1 |
| Silica gel | High purity porous spherical silica |
| Average particle size | 3 µm, 5 µm, 15 µm |
| Average pore size | approx. 120Å |
| Specific surface area | approx. 300m2/g |
| Stationary phase | Octadecyl group |
| Bonding type | Polymeric type |
| End capping treatment | Near-perfect treatment |
| Carbon content | approx. 17% |
| pH range | 1.5 - 7.5 |

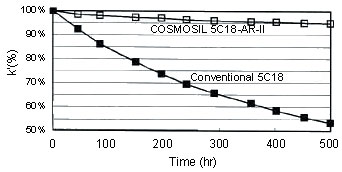

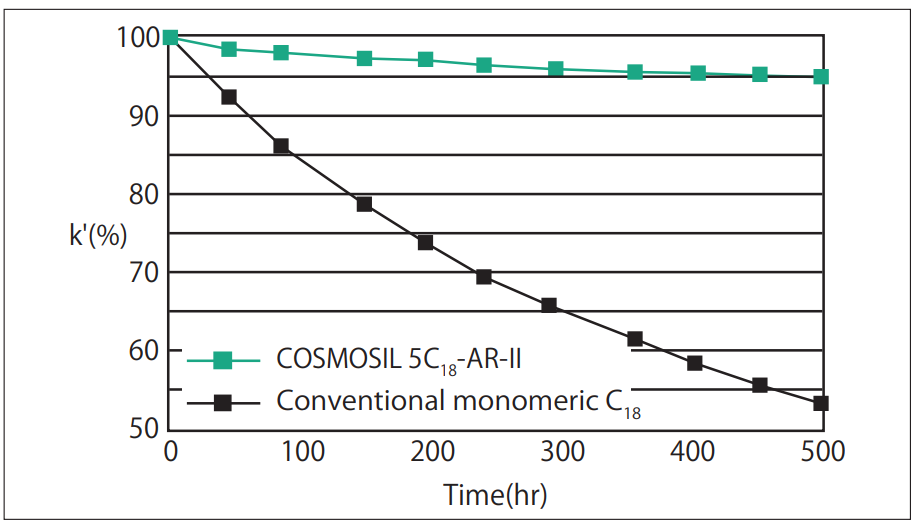

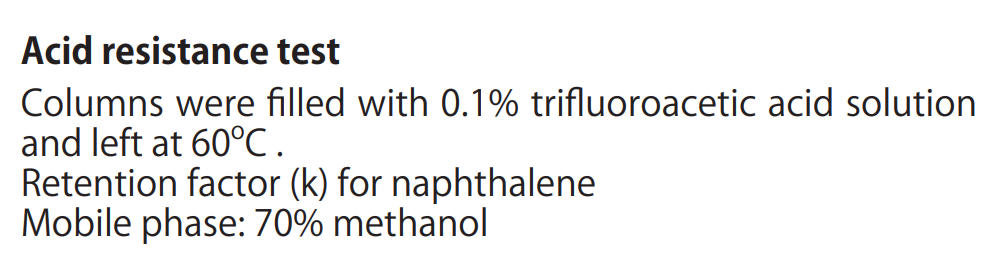

Low pH stability test with TFA

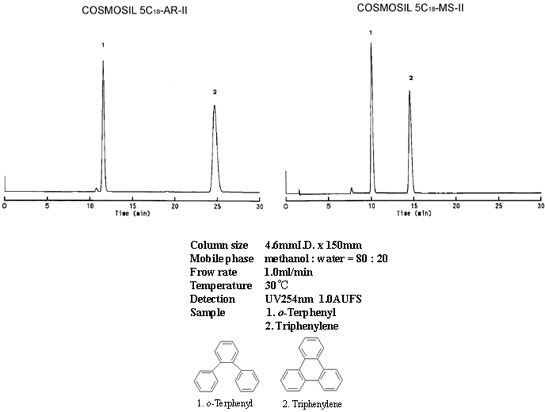

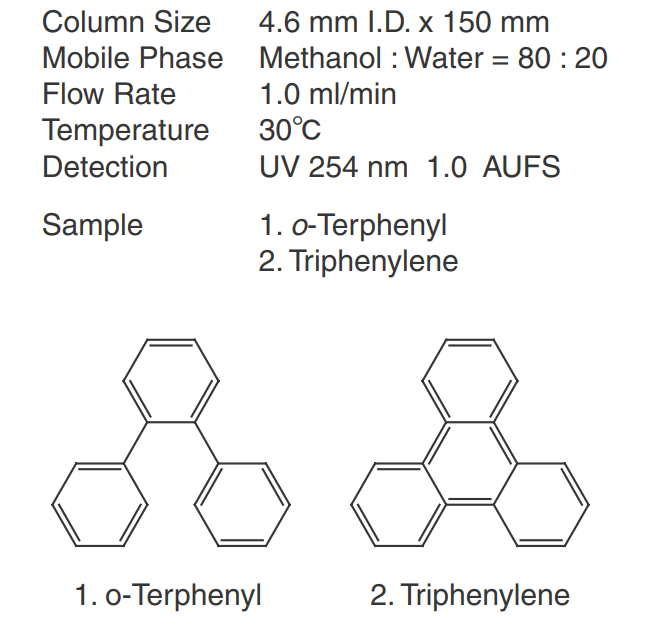

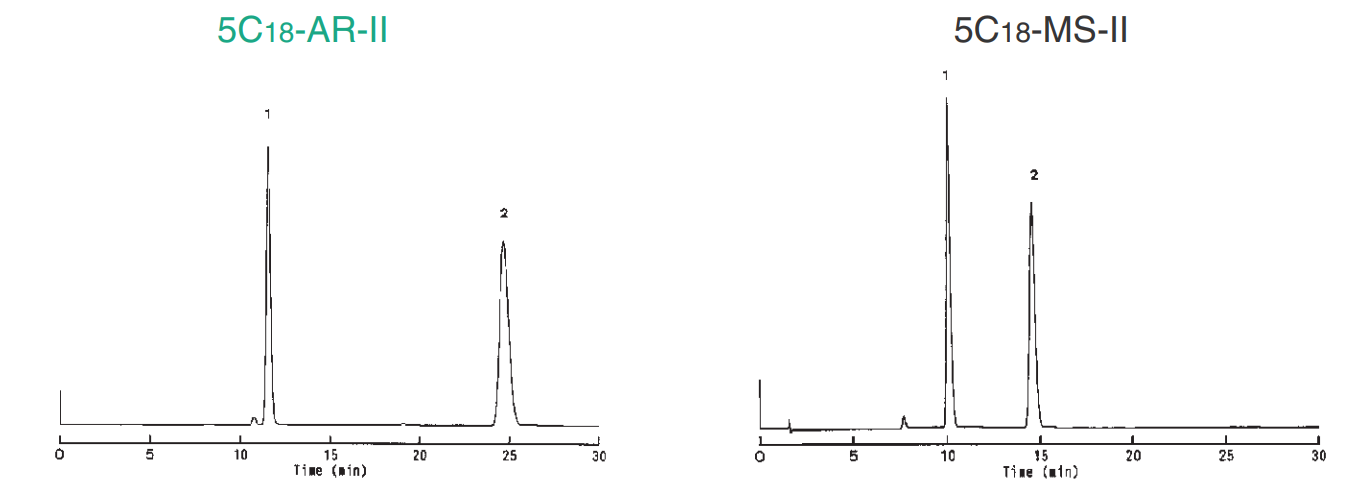

Planarity Selectivity

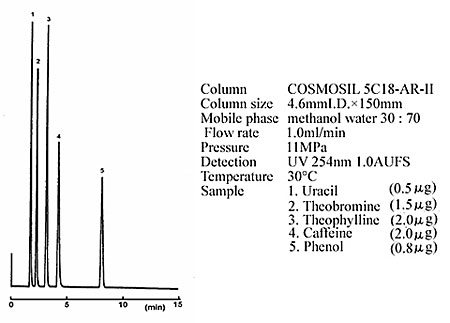

Separation of polar compounds
Separation of polar compounds

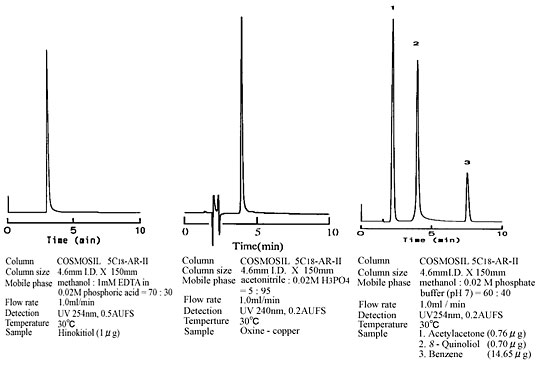

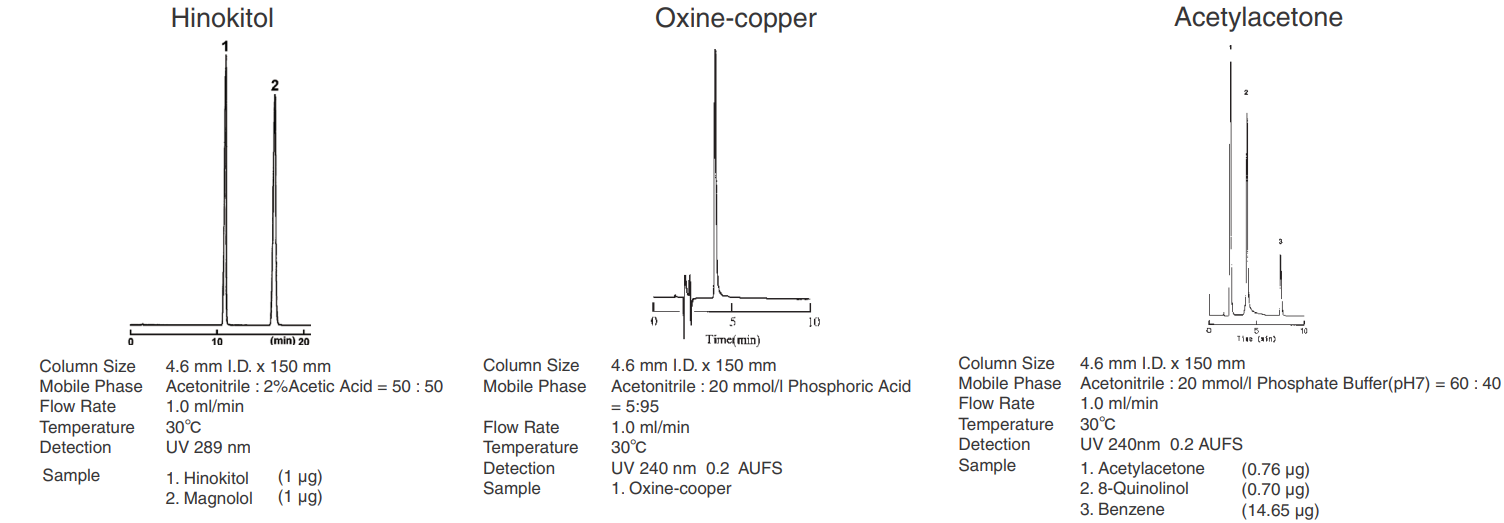

Separation of chelating compounds
Separation of chelating compounds

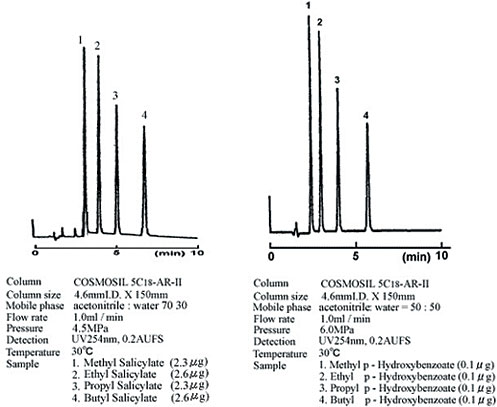

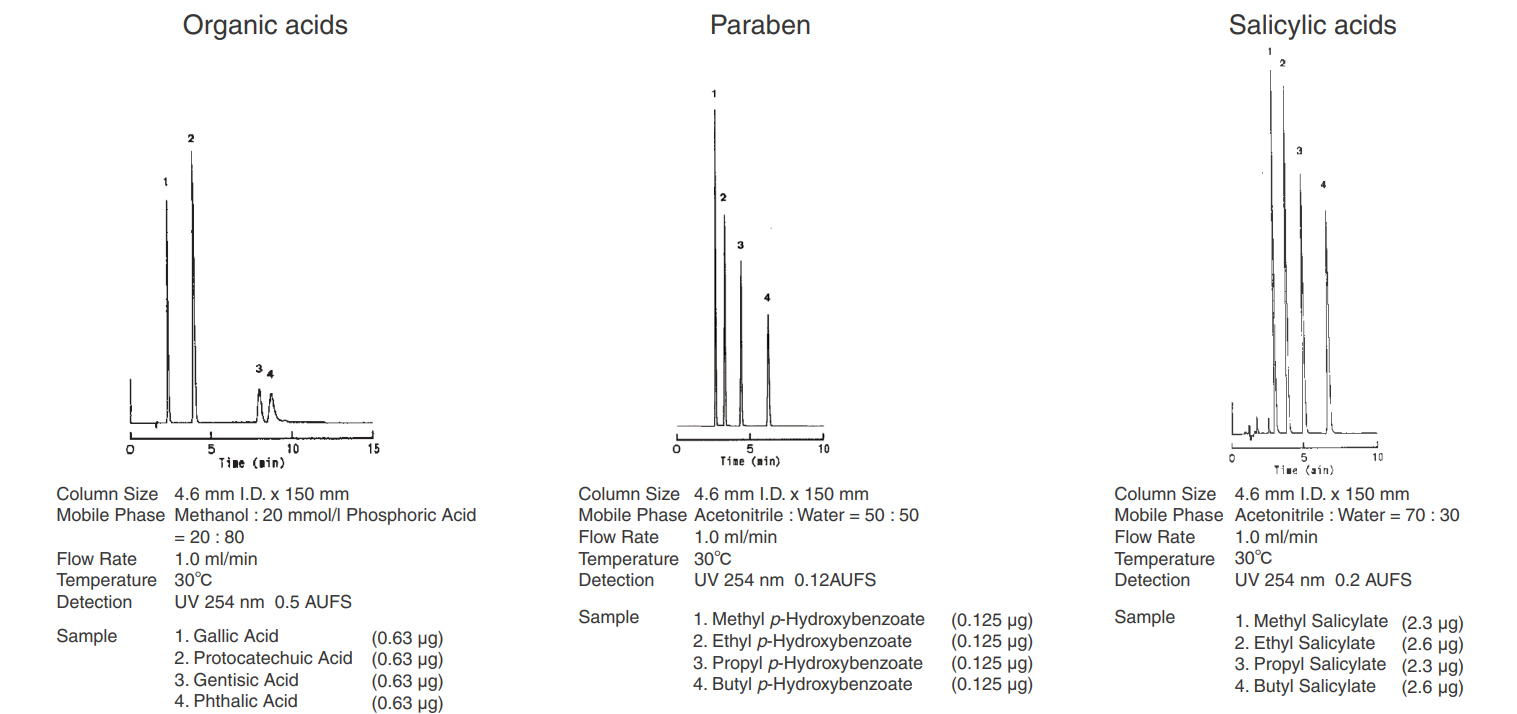

Performance for acidic compounds
Performance for acidic compounds

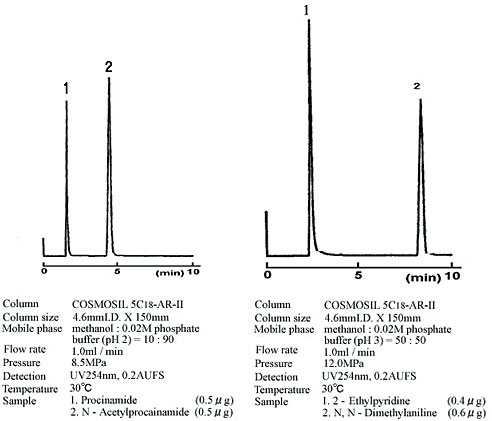

Performance for basic compounds
Performance for basic compounds

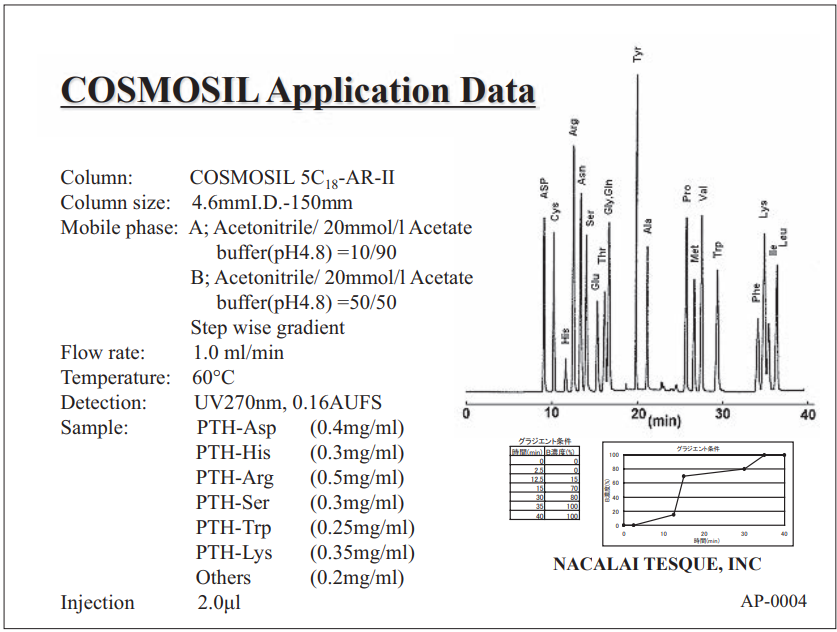

COSMOSIL Application Search
COSMOSIL Application, which includes more than 7,700 applications using COSMOSIL/COSMOCORE columns, is now usable by clicking the link below which is in Nacalai Tesque, Inc. The application is searchable by sample category, sample name, CAS No., column name and particle size
Ordering Information
Guard Column / Guard Cartridge
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Guard Column (2.0 mm I.D. x 10 mm) | End-Fitting: Waters type | 09240-61 | 1 pkg | - | Inquire |
HPLC Accessories
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL Column Spare Filter for Prefilter (1 micron) | End-Fitting: Waters type | 39539-09 | 1 pkg | 55.00 | Buy |
| COSMOSIL Column Connecting Tube (0.25 mm) | End-Fitting: Waters type | 37843-69 | 1 pkg | 65.00 | Buy |
| COSMOSIL Column Connecting Tube (0.1 mm) | End-Fitting: Waters type | 12570-41 | 1 pkg | 65.00 | Buy |
| COSMOSIL Column Prefilter | End-Fitting: Waters type | 39361-19 | 1 pkg | 145.00 | Buy |
Guard Column / Guard Cartridge
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Guard Cartridge (4.6 mm I.D. x 10 mm) | End-Fitting: Waters type | 38008-89 | 3 pkg | 188.00 | Buy |
HPLC Accessories
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL Guard Cartridge Holder (2.0 mm I.D.) | End-Fitting: Waters type | 11884-71 | 1 pkg | 265.00 | Buy |
| COSMOSIL Direct Cartridge Holder | End-Fitting: Waters type | 19989-71 | 1 pkg | 270.00 | Buy |
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 3C18-AR-II Packed Column (4.6 mm l.D. x 10 mm) | End-Fitting: Waters type | 38068-41 | 1 pkg | 359.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (4.6 mm l.D. x 50 mm) | End-Fitting: Waters type | 38069-31 | 1 pkg | 359.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (4.6 mm I.D. x 30 mm) | End-Fitting: Waters type | 05877-61 | 1 pkg | 386.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (4.6 mm I.D. x 50 mm) | End-Fitting: Waters type | 38142-51 | 1 pkg | 386.00 | Buy |
Guard Column / Guard Cartridge
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 3C18-AR-II Guard Column (2.0 mm l.D. x 10 mm) | End-Fitting: Waters type | 12851-61 | 1 pkg | 428.00 | Buy |
| COSMOSIL 5C18-AR-II Guard Column (10.0 mm I.D. x 20 mm) | End-Fitting: Waters type | 38148-91 | 1 pkg | 450.00 | Buy |
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Packed Column (4.6 mm I.D. x 100 mm) | End-Fitting: Waters type | 38143-41 | 1 pkg | 471.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (4.6 mm I.D. x 150 mm) | End-Fitting: Waters type | 38144-31 | 1 pkg | 471.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (2.0 mm l.D. x 50 mm) | End-Fitting: Waters type | 05478-91 | 1 pkg | 482.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (2.0 mm l.D. x 75 mm) | End-Fitting: Waters type | 34471-61 | 1 pkg | 482.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (1.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 02955-21 | 1 pkg | 482.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (2.0 mm I.D. x 30 mm) | End-Fitting: Waters type | 05098-71 | 1 pkg | 482.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (2.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 34400-81 | 1 pkg | 482.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (4.6 mm I.D. x 250 mm) | End-Fitting: Waters type | 38145-21 | 1 pkg | 509.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (2.0 mm l.D. x 100 mm) | End-Fitting: Waters type | 06941-71 | 1 pkg | 514.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (4.6 mm l.D. x 75 mm) | End-Fitting: Waters type | 13362-41 | 1 pkg | 519.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (4.6 mm l.D. x 100 mm) | End-Fitting: Waters type | 38070-91 | 1 pkg | 519.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (1.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 02951-61 | 1 pkg | 519.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (4.6 mm l.D. x 250 mm) | End-Fitting: Waters type | 19391-81 | 1 pkg | 541.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (2.0 mm I.D. x 100 mm) | End-Fitting: Waters type | 34469-11 | 1 pkg | 541.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (2.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 37992-51 | 1 pkg | 541.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (3.0 mm I.D. x 100 mm) | End-Fitting: Waters type | 05791-71 | 1 pkg | 541.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (3.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 38028-61 | 1 pkg | 541.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (4.6 mm l.D. x 150 mm) | End-Fitting: Waters type | 06887-01 | 1 pkg | 552.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (2.0 mm l.D. x 150 mm) | End-Fitting: Waters type | 07583-41 | 1 pkg | 589.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (2.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 05272-71 | 1 pkg | 594.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (3.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 38029-51 | 1 pkg | 594.00 | Buy |
| COSMOSIL 3C18-AR-II Packed Column (3.0 mm l.D. x 250 mm) | End-Fitting: Waters type | 16864-81 | 1 pkg | 621.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (6.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 38146-11 | 1 pkg | 664.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (1.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 13370-31 | 1 pkg | 685.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (10.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 05369-21 | 1 pkg | 711.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (6.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 38147-01 | 1 pkg | 728.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (10.0 mm I.D. x 100 mm) | End-Fitting: Waters type | 07800-81 | 1 pkg | 889.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (10.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 34350-41 | 1 pkg | 963.00 | Buy |
Guard Column / Guard Cartridge
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Guard Column (20.0 mm I.D. x 20 mm) | End-Fitting: Waters type | 34458-51 | 1 pkg | 990.00 | Buy |
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Packed Column (10.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 38149-81 | 1 pkg | 1,247.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (3 Lots Set) (4.6 mm I.D. x 150 mm) | End-Fitting: Waters type | 09396-83 | 3 pkg | 1,408.00 | Buy |
Guard Column / Guard Cartridge
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Guard Column (20.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 34479-81 | 1 pkg | 1,504.00 | Buy |
| COSMOSIL 15C18-AR-II Guard Column (28.0 mm l.D. x 50 mm) | End-Fitting: Waters type | 38030-11 | 1 pkg | 2,023.00 | Buy |
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Packed Column (20.0 mm I.D. x 100 mm) | End-Fitting: Waters type | 08059-91 | 1 pkg | 2,114.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (20.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 34316-01 | 1 pkg | 2,114.00 | Buy |
| COSMOSIL 15C18-AR-II Packed Column (20.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 07184-71 | 1 pkg | 2,568.00 | Buy |
Guard Column / Guard Cartridge
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Guard Column (28.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 34363-81 | 1 pkg | 2,804.00 | Buy |
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Packed Column (20.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 38150-41 | 1 pkg | 2,906.00 | Buy |
Guard Column / Guard Cartridge
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 15C18-AR-II Guard Column (50.0 mm l.D. x 50 mm) | End-Fitting: Waters type | 38057-81 | 1 pkg | 3,879.00 | Buy |
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5C18-AR-II Packed Column (28.0 mm I.D. x 100 mm) | End-Fitting: Waters type | 16584-51 | 1 pkg | 4,601.00 | Buy |
| COSMOSIL 15C18-AR-II Packed Column (28.0 mm l.D. x 250 mm) | End-Fitting: Waters type | 37978-51 | 1 pkg | 4,783.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (28.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 16585-41 | 1 pkg | 4,815.00 | Buy |
| COSMOSIL 5C18-AR-II Packed Column (28.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 34362-91 | 1 pkg | 5,650.00 | Buy |
| COSMOSIL 15C18-AR-II Packed Column (50.0 mm l.D. x 250 mm) | End-Fitting: Waters type | 38058-71 | 1 pkg | 7,938.00 | Buy |
| COSMOSIL 15C18-AR-II Packed Column (50.0 mm l.D. x 500 mm) | End-Fitting: Waters type | 05884-61 | 1 pkg | 15,040.00 | Buy |
HPLC Accessories
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL Guard Cartridge Holder (4.6 mm I.D.) **Discontinued** | End-Fitting: Waters type | 38009-79 | 1 pkg | - | Inquire |
** Guard cartridges require a guard cartridge holder.
** #38009-79 has been discontinued. Alternative product is COSMOSIL Direct Cartridge Holder (#19989-71).
