COSMOSIL PYE and COSMOSIL NPE
Specialty for Structual Isomers / π-π interaction, charge transfer and stereo selectivity
COSMOSIL PYE (pyrenylethyl group bonded) and COSMOSIL NPE (nitrophenylethyl group bonded) column show unique retention characteristics based on multiple separation modes such as hydrophobic, charge transfer and π-π interactions. These columns are recommended for the separation of structural isomers.
| COSMOSIL 5PYE | COSMOSIL 5NPE | |
|---|---|---|
| Silica gel | high purity spherical porous silica | |
| Average particle size | 5µm | |
| Average pore size | approx. 120Å | |
| Specific surface area | approx. 300m²/g | |

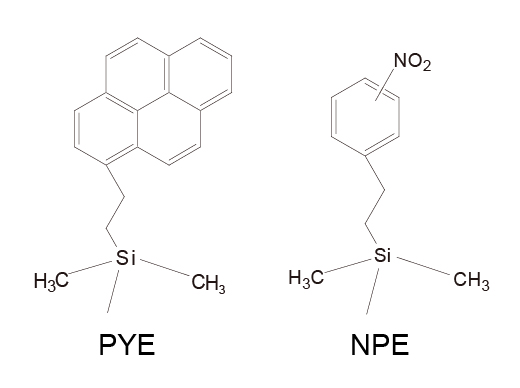

| Stationary phase | 2-(1-pyrenyl)ethyl group | nitrophenylethyl group |
| End capping treatment | near-perfect treatment | |

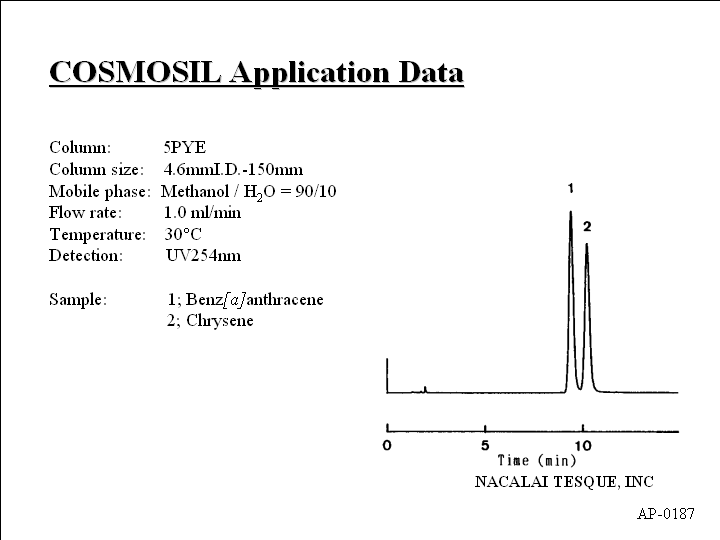

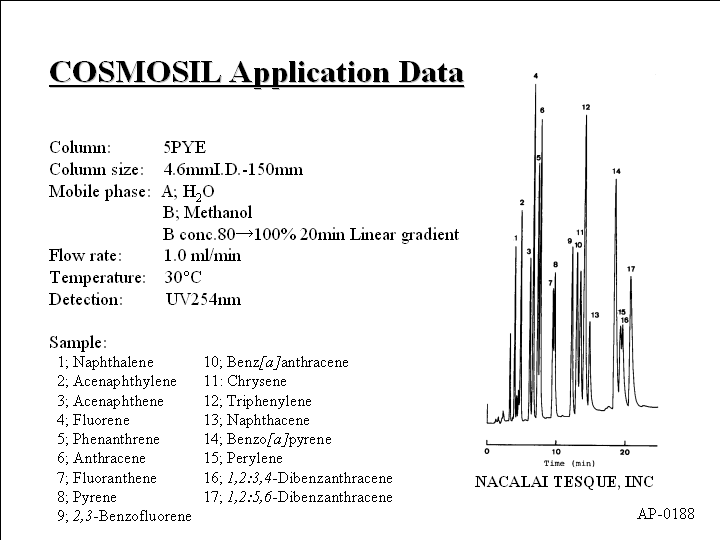

Separation of PAHs
Due to the planar pyrene ring structure and strong π-π interactions, COSMOSIL PYE achieves excellent separation of aromatic isomers.
Sample: 1,2:3,4-Dibenzanthracene (CAS# 215-58-7), 1,2:5,6-Dibenzanthracene (CAS#53-70-3) 2,3-Benzofluorene (CAS#243-17-4), Acenaphthene (CAS#83-32-9), Acenaphthylene (CAS#208-96-8), Anthracene (CAS#120-12-7), Benzo[a]pyrene (CAS#50-32-8), Chrysene (CAS#218-01-9), Fluoranthene (CAS#206-44-0), Fluorene (CAS#86-73-7), Naphthacene (CAS#92-24-0), Naphthalene (CAS#91-20-3), Perylene (CAS#198-55-0), Phenanthrene (CAS#85-01-8), Pyrene (CAS#129-00-0), Tetraphene [Benz[a]anthracene] (CAS#56-55-3), Triphenylene (CAS#217-59-4)

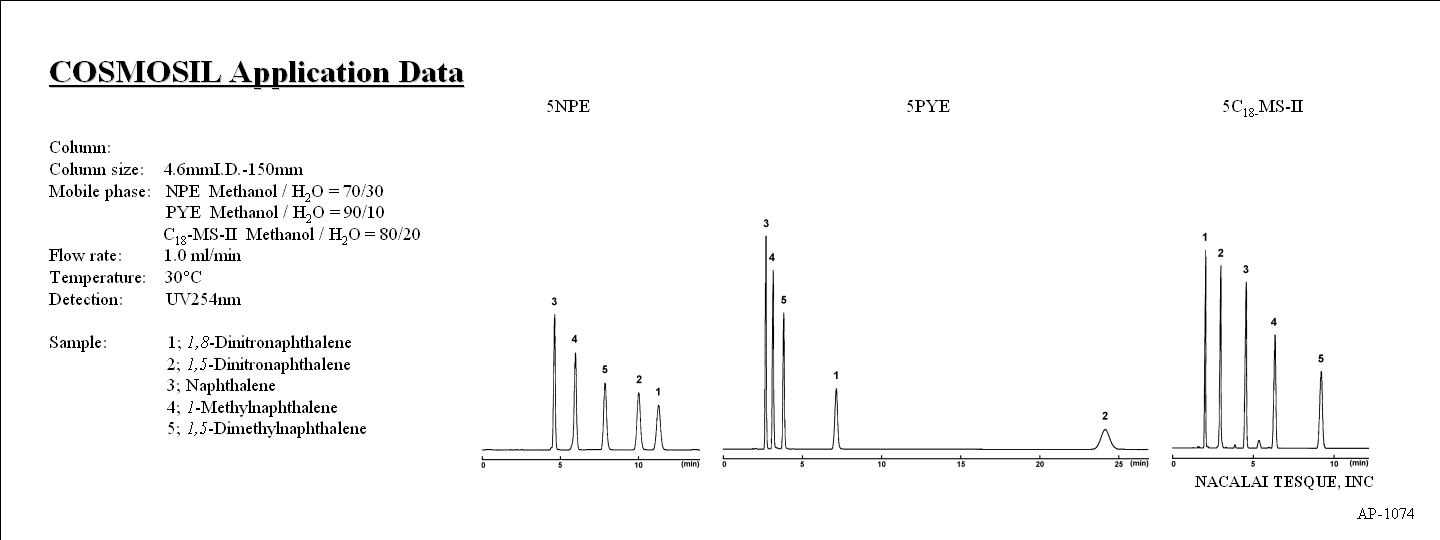

Advantage of dipole-dipole interactions
COSMOSIL NPE retains 1, 8-dinitronaphthalene longer than 1, 5-dinitronaphthalene due to the dipole-dipole and π-π interactions.

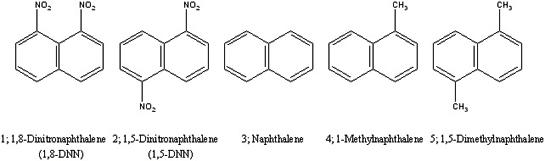

Sample: 1,5-Dimethylnaphthalene (CAS#571-61-9), 1,5-Dinitronaphthalene (CAS#605-71-0), 1,8-Dinitronaphthalene (CAS#602-38-0), 1-Methylnaphthalene (CAS#90-12-0), Naphthalene (CAS#91-20-3)
Application

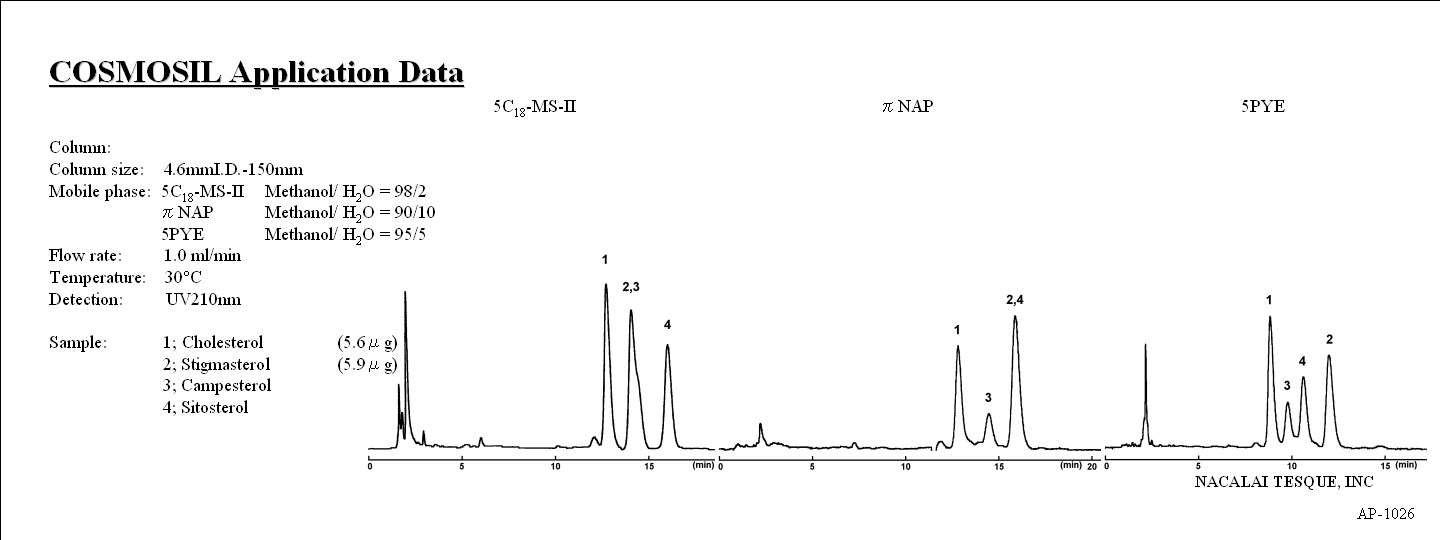

Sterols
Sample: Campesterol (CAS#474-62-4), Cholesterol (CAS#57-88-5), Sitosterol (CAS#83-46-5), Stigmasterol (CAS#83-48-7)
Tocopherols
Sample: (+)-γ-Tocopherol (CAS#54-28-4), (+)-δ-Tocopherol (CAS#119-13-1), DL-α-Tocopherol (CAS#10191-41-0), DL-β-Tocopherol (CAS#148-03-8)
Usage Information
| Column | 5 µm PYE | ||||
|---|---|---|---|---|---|
| I.D. (mm) | 2.0 | 3.0 | 4.6 | 10.0 | 20.0 |
| Washing method | 1. Remove buffer, salts and/or acid from column: wash for 10-15 min. using the mobile phase last used, without buffer, salts or acid. For example, if your mobile phase was 50:50 methanol/20 mmol/l phosphate buffer, wash with 50:50 methanol/water. 2. (If you used a buffer, always do step 1 first!) Remove adsorbed compounds and fix unstable baselines by washing with methanol and/or THF. |
||||
| Storage conditions | Short-term (up to a week): Remove buffer, salts and/or acid from column: wash for 10-15 min. using the mobile phase last used, without buffer, salts or acid. For example, if your mobile phase was 50:50 methanol/20 mmol/l phosphate buffer, wash with 50:50 methanol/water. Long-term: Remove buffer, salts and/or acid from column: wash for 10-15 min. using the mobile phase last used, without buffer, salts or acid. Then, replace the solvent with 70% methanol or acetonitrile : 30% water. In either case, tightly plug the column, and store in a cool and dry place. |
||||
| Usable pH range | pH2～pH7.5 | ||||
| Max. pressure | 20MPa | 15MPa | |||
| Temperature range | The maximum usable temperature is 60°C. However. for regular use, please use at a constant temperature between 20°C and 50°C. | ||||
| Usable solvents |
- Any solvent that will not dissolve the silica gel (such as alkaline solutions) or cleave the stationary phase (such as very acidic solutions) is usable. - Methanol is the recommended mobile phase for COSMOSIL PYE. Acetonitrile is not recommended because it has many π-π electrons and interferes with π-π interactions between the sample and the stationary phasae. Note: For solvents with high viscosity, please watch the system pressure and keep it below 20 MPa. Also, please wash the column after using acidic mobile phases or solvents with high freezing points. |
||||
| Other instructions |
- Buffer concentration is usually sufficient at 0.005 - 0.02 mol/L. - Always filter mobile phases using a 0.5 µm or finer filter before use. - As acetonitrile interferes with π electron interactions, please use a methanol-based mobile phase. - The baseline may become unstable due to the high UV absorption of shedded stationary phase. If this occurs, please wash the column with THF (Tetrahydrofuran). A small amount of stationary phase shedding will not affect performance. - This column is not suitable for gradient analysis. |
||||
COSMOSIL NPE
| Column | 5 µm NPE | ||||
|---|---|---|---|---|---|
| I.D. (mm) | 2.0 | 3.0 | 4.6 | 10.0 | 20.0 |
| Washing method | 5 µm C18-MS-II | ||||
| Storage conditions | Short-term (up to a week): Remove buffer, salts and/or acid from column: wash for 10-15 min. using the mobile phase last used, without buffer, salts or acid. For example, if your mobile phase was 50:50 methanol/20 mmol/l phosphate buffer, wash with 50:50 methanol/water. Long-term: Remove buffer, salts and/or acid from column: wash for 10-15 min. using the mobile phase last used, without buffer, salts or acid. Then, replace the solvent with 70% methanol or acetonitrile : 30% water. In either case, tightly plug the column, and store in a cool and dry place. |
||||
| Usable pH range | pH2～pH7.5 | ||||
| Max. pressure | 20MPa | 15MPa | |||
| Temperature range | The maximum usable temperature is 60°C. However. for regular use, please use at a constant temperature between 20°C and 50°C. | ||||
| Usable solvents |
- Any solvent that will not dissolve the silica gel (such as alkaline solutions) or cleave the stationary phase (such as very acidic solutions) is usable. - Methanol is the recommended mobile phase for COSMOSIL NPE. Acetonitrile is not recommended because it has many π-π electrons and interferes with π-π interactions between the sample and the stationary phasae. Note: For solvents with high viscosity, please watch the system pressure and keep it below 20 MPa. Also, please wash the column after using acidic mobile phases or solvents with high freezing points. |
||||
| Other instructions |
- Buffer concentration is usually sufficient at 0.005 - 0.02 mol/L. - Always filter mobile phases using a 0.5 µm or finer filter before use. - As acetonitrile interferes with π electron interactions, please use a methanol-based mobile phase. - The baseline may become unstable due to the high UV absorption of shedded stationary phase. If this occurs, please wash the column with THF (Tetrahydrofuran). A small amount of stationary phase shedding will not affect performance. - This column is not suitable for gradient analysis. |
||||
COSMOSIL Application Search
COSMOSIL Application, which includes more than 7,700 applications using COSMOSIL/COSMOCORE columns, is now usable by clicking the link below which is in Nacalai Tesque, Inc. The application is searchable by sample category, sample name, CAS No., column name and particle size
Downloads
- COSMOSIL PYE/NPE (Brochure)
(2.7 MB)
Ordering Information
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Guard Column (2.0 mm I.D. x 10 mm) | End-Fitting: Waters type | 17787-71 | 1 pkg | - | Inquire |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Guard Column (4.6 mm I.D. x 10 mm) | End-Fitting: Waters type | 37904-01 | 1 pkg | 450.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Guard Column (4.6 mm I.D. x 10 mm) | End-Fitting: Waters type | 37903-11 | 1 pkg | 482.00 | Buy |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Packed Column (2.0 mm I.D. x 100 mm) | End-Fitting: Waters type | 34500-71 | 1 pkg | 899.00 | Buy |
| COSMOSIL 5NPE Guard Column (10.0 mm I.D. x 20 mm) | End-Fitting: Waters type | 38045-31 | 1 pkg | 904.00 | Buy |
| COSMOSIL 5NPE Packed Column (2.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 34328-51 | 1 pkg | 958.00 | Buy |
| COSMOSIL 5NPE Packed Column (4.6 mm I.D. x 150 mm) | End-Fitting: Waters type | 37902-21 | 1 pkg | 958.00 | Buy |
| COSMOSIL 5NPE Packed Column (4.6 mm I.D. x 100 mm) | End-Fitting: Waters type | 04673-51 | 1 pkg | 1,006.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Packed Column (4.6 mm I.D. x 50 mm) | End-Fitting: Waters type | 38043-51 | 1 pkg | 1,054.00 | Buy |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Packed Column (1.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 05897-01 | 1 pkg | 1,070.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Packed Column (2.0 mm I.D. x 100 mm) | End-Fitting: Waters type | 34501-61 | 1 pkg | 1,194.00 | Buy |
| COSMOSIL 5PYE Packed Column (1.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 04681-41 | 1 pkg | 1,236.00 | Buy |
| COSMOSIL 5PYE Packed Column (2.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 18864-21 | 1 pkg | 1,338.00 | Buy |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Packed Column (4.6 mm I.D. x 250 mm) | End-Fitting: Waters type | 37990-71 | 1 pkg | 1,349.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Packed Column (4.6 mm I.D. x 100 mm) | End-Fitting: Waters type | 04672-61 | 1 pkg | 1,349.00 | Buy |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Packed Column (2.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 34379-91 | 1 pkg | 1,359.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Packed Column (4.6 mm I.D. x 150 mm) | End-Fitting: Waters type | 37837-91 | 1 pkg | 1,440.00 | Buy |
| COSMOSIL 5PYE Guard Column (10.0 mm I.D. x 20 mm) | End-Fitting: Waters type | 38041-71 | 1 pkg | 1,531.00 | Buy |
| COSMOSIL 5PYE Packed Column (1.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 02851-71 | 1 pkg | 1,552.00 | Buy |
| COSMOSIL 5PYE Packed Column (2.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 38042-61 | 1 pkg | 1,552.00 | Buy |
| COSMOSIL 5PYE Packed Column (2.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 34450-31 | 1 pkg | 2,092.00 | Buy |
| COSMOSIL 5PYE Packed Column (4.6 mm I.D. x 250 mm) | End-Fitting: Waters type | 37989-11 | 1 pkg | 2,103.00 | Buy |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Guard Column (20.0 mm I.D. x 20 mm) | End-Fitting: Waters type | 05868-81 | 1 pkg | 3,328.00 | Buy |
| COSMOSIL 5NPE Packed Column (10.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 05469-11 | 1 pkg | 4,024.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Guard Column (20.0 mm I.D. x 20 mm) | End-Fitting: Waters type | 05867-91 | 1 pkg | 5,201.00 | Buy |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Guard Column (20.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 05869-71 | 1 pkg | 5,421.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Packed Column (10.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 37996-11 | 1 pkg | 6,586.00 | Buy |
| COSMOSIL 5PYE Guard Column (20.0 mm I.D. x 50 mm) | End-Fitting: Waters type | 34475-21 | 1 pkg | 9,034.00 | Buy |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Packed Column (20.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 02638-81 | 1 pkg | 11,706.00 | Buy |
| COSMOSIL 5NPE Packed Column (20.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 38046-21 | 1 pkg | 14,623.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Packed Column (20.0 mm I.D. x 150 mm) | End-Fitting: Waters type | 05948-31 | 1 pkg | 18,549.00 | Buy |
| COSMOSIL 5PYE Packed Column (20.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 38044-41 | 1 pkg | 24,889.00 | Buy |
COSMOSIL 5NPE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5NPE Packed Column (28.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 09553-71 | 1 pkg | 32,047.00 | Buy |
COSMOSIL 5PYE
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL 5PYE Packed Column (28.0 mm I.D. x 250 mm) | End-Fitting: Waters type | 34300-91 | 1 pkg | 52,644.00 | Buy |
