COSMOSIL Buckyprep
Specialty for Fullerenes / Preparative Separation of Fullerrenes
COSMOSIL Buckyprep is a pyrenylpropyl group bonded silica based column specifically designed for fullerene separation. The unparalleled separation capabilities have enabled COSMOSIL Buckyprep to become the world benchmark of HPLC column for fullerene separation. COSMOSIL Buckyprep retains fullerenes very strongly with a mobile phase of 100% toluene and exceeds the injection volume of a standard C18 column by a factor of 35. Therefore, preparative-scale separation can be obtained with a 250 mm x 4.6 mm I.D. analytical column.
| COSMOSIL Buckyprep | |
|---|---|
| Silica gel | High purity porous spherical silica gel |
| Average particle size | 5µm |
| Average pore size | approx. 120Å |
| Specific surface area | approx. 300m²/g |
| Stationary phase | 3-(1-pyrenyl)propyl group |
| End capping treatment | Near-perfect treatment |
| Carbon content | approx. 17% |
Application

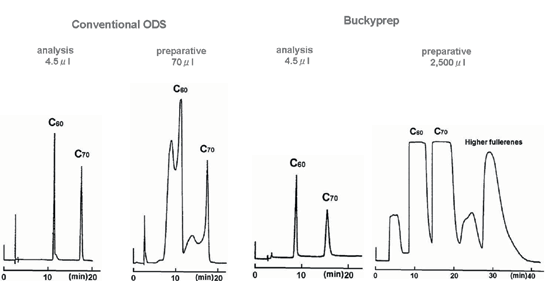

Conventional ODS vs. COSMOSIL Buckyprep
Column size: 4.6mmI.D.×250mm
Mobile phase: conventional ODS; toluene:acetonitrile=55:45
Buckyprep; toluene
Flow rate: 1.0 ml/min.;
Detection: UV 285 nm
Temperature: 30°C
Sample: Fullerenes dissolved in toluenes (2.5mg/ml)

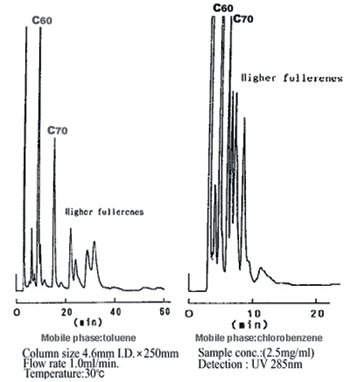

Separation of higher Fullerenes on BUCKYPREP
Usage Information
| Column | 5 µm Buckprep | |||
|---|---|---|---|---|
| I.D. (mm) | 2.0 | 4.6 | 10.0 | 20.0 |
| Washing method | Wash with 1,2,4,-trichlorobenzene or other strong solvent to remove adsorbed contaminants. | |||
| Storage conditions | Wash column, then replace solvent with toluene. Plug tightly and store in a cool, dry place. | |||
| Max. pressure | 20MPa | 15MPa | ||
| Temperature range | The maximum usable temperature is 60°C. However. for regular use, please use at a constant temperature between 20°C and 50°C. | |||
| Solvents usable with Buckyprep Series | ||
|---|---|---|
| Solvent | Features | C60 Solubility (mg/ml) |
| Toluene | General-use solvent for fullerenes. | 3.2 |
| n-Hexane | Weaker eluent than toluene. | 0.046 |
| n-Heptane | ** | |
| Methanol | 0.001 | |
| 2-Propanol | ** | |
| Acetonitrile | Weaker eluent than toluene. | 0.018 |
| Chlorobenzene | Stronger eluent than toluene. | 7 |
| o-Dichlorobenzene | Stronger eluent than chlorobenzene. | 27 |
| 1,2,4-Trichlorobenzene | Strongest commonly-used eluent. Can be used to flush higher fullerenes. | 21.3 |
Fullerene Chromatogram Index
Fullerene Chromatogram Index includes more than 100 chromatograms is available at the website of The Fullerenes, Nanotubes and Graphene Research Society. (Click here to download)
COSMOSIL Application Search
COSMOSIL Application, which includes more than 7,700 applications using COSMOSIL/COSMOCORE columns, is now usable by clicking the link below which is in Nacalai Tesque, Inc. The application is searchable by sample category, sample name, CAS No., column name and particle size
Ordering Information
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL Buckyprep Packed Column (2.0 mm ID. x 150 mm) | End-Fitting: Waters type |
06176-11 | 1 pkg | 2,033.00 | Buy |
| COSMOSIL Buckyprep Packed Column (2.0 mm ID. x 250 mm) | End-Fitting: Waters type |
06976-31 | 1 pkg | 2,194.00 | Buy |
| COSMOSIL Buckyprep Packed Column (4.6 mm I.D. x 250 mm) | End-Fitting: Waters type |
37977-61 | 1 pkg | 2,194.00 | Buy |
| COSMOSIL Buckyprep Packed Column (10.0 mm I.D. x 250 mm) | End-Fitting: Waters type |
37981-91 | 1 pkg | 7,068.00 | Buy |
| COSMOSIL Buckyprep Packed Column (20.0 mm I.D. x 250 mm) | End-Fitting: Waters type |
37982-81 | 1 pkg | 25,563.00 | Buy |
| COSMOSIL Buckyprep Packed Column (28.0 mm I.D. x 250 mm) | End-Fitting: Waters type |
34346-11 | 1 pkg | 43,603.00 | Buy |
| COSMOSIL Buckyprep Guard Column (4.6 mm I.D. x 10 mm) | End-Fitting: Waters type |
37983-71 | 1 pkg | 541.00 | Buy |
| COSMOSIL Buckyprep Guard Column (10.0 mm I.D. x 20 mm) | End-Fitting: Waters type |
37984-61 | 1 pkg | 1,605.00 | Buy |
| COSMOSIL Buckyprep Guard Column (20.0 mm I.D. x 50 mm) | End-Fitting: Waters type |
34374-41 | 1 pkg | 6,618.00 | Buy |
| COSMOSIL Buckyprep Guard Column (28.0 mm I.D. x 50 mm) | End-Fitting: Waters type |
05871-21 | 1 pkg | 13,076.00 | Buy |
