COSMOSIL CNT
Specialty for Fullerenes / Separation of Soluble Carbon Nanotubes
COSMOSIL CNT series are ideal for separation of soluble carbon nanotubes based on sizes. COSMOSIL CNT series are packed with hydrophilic group-bonded silica packing material. The columns are specially designed to avoid adsorption of carbon nanotubes to silica support and thus ensure high resolution and maximum recovery of carbon nanatubes. COSMOSIL CNT series are available in three different pore sizes, 300 Å, 1000 Å and 2000 Å, respectively.
Features
- Size-based separation of soluble carbon nanotubes
- Hydrophilic group coating silica packing material
- Three types of pore sizes (300 Å, 1000 Å, 2000 Å)
- High durability
| Packing material | CNT-300 | CNT-1000 | CNT-2000 |
|---|---|---|---|
| Silica gel | High purity porous spherical silica | ||
| Average particle size | 5 µm | ||
| Average pore size | approx. 300 Å | approx. 1000 Å | approx. 2000 Å |
| Stationary phase | Hydrophilic group (neutral) | ||
| pH Range | 2 - 7.5 | ||
| Pressure | 15 MPa and below | ||
Image courtesy of Dr. Y. Ito, Univ. of Oxford

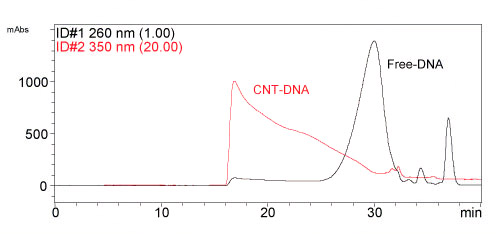

Size-based separation of carbon nanotubes
| Column | COSMOSIL CNT-300 7.5 mm I.D. x 300 mm COSMOSIL CNT-1000 7.5 mm I.D. x 300 mm COSMOSIL CNT-2000 7.5 mm I.D. x 300 mm |
| Mobile phase | 0.5 mmol/l EDTA, 200 mmol/l NaCl, 40 mmol/l Tris-Tris HCl(pH 7.0) |
| Flow rate | 1.0 ml/min |
| Temperature | 40 °C |
| Detection | UV 260 nm (x 1), 350 nm (x 20) |
| Sample | DNA-wrapped CNT (CNT-DNA) |
| Injection vol. | 500 µl |
| Pressure | 8.1 MPa |
Sample courtesy of Prof. H. Shinohara, Department of Chemistry & Institute for Advanced Research, Nagoya University

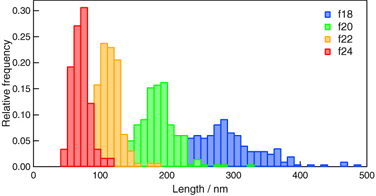

AFM (Atomic Force Microscope) Analysis
| Fr. 18(17~18min) | Fr. 20(19~20min) | Fr. 24(23~24min) |
 |
 |
 |
 |
||
Data courtesy of Y. Asada and Prof. H. Shinohara, Department of Chemistry & Institute for Advanced Research, Nagoya University
COSMOSIL Application Search
COSMOSIL Application, which includes more than 7,700 applications using COSMOSIL/COSMOCORE columns, is now usable by clicking the link below which is in Nacalai Tesque, Inc. The application is searchable by sample category, sample name, CAS No., column name and particle size
Ordering Information
COSMOSIL CNT-1000
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL CNT-1000 Packed Column (7.5 mmI.D. x 300 mm) | End-Fitting: Waters type |
09197-51 | 1 pkg | 2,820.00 | Buy |
| COSMOSIL CNT-1000 Packed Column (10.0 mmI.D. x 250 mm) | End-Fitting: Waters type |
06537-81 | 1 pkg | 4,013.00 | Buy |
| COSMOSIL CNT-1000 Guard Column (7.5 mmI.D. x 50 mm) | End-Fitting: Waters type |
09196-61 | 1 pkg | 717.00 | Buy |
COSMOSIL CNT-2000
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL CNT-2000 Packed Column (7.5 mmI.D. x 300 mm) | End-Fitting: Waters type |
09199-31 | 1 pkg | 2,820.00 | Buy |
| COSMOSIL CNT-2000 Packed Column (10.0 mmI.D. x 250 mm) | End-Fitting: Waters type |
06538-71 | 1 pkg | 4,013.00 | Buy |
| COSMOSIL CNT-2000 Guard Column (7.5 mmI.D. x 50 mm) | End-Fitting: Waters type |
09198-41 | 1 pkg | 717.00 | Buy |
COSMOSIL CNT-300
| Product | Description | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|---|
| COSMOSIL CNT-300 Packed Column (7.5 mmI.D. x 300 mm) | End-Fitting: Waters type |
09195-71 | 1 pkg | 2,820.00 | Buy |
| COSMOSIL CNT-300 Packed Column (10.0 mmI.D. x 250 mm) | End-Fitting: Waters type |
06536-91 | 1 pkg | 4,013.00 | Buy |
| COSMOSIL CNT-300 Guard Column (7.5 mmI.D. x 50 mm) | End-Fitting: Waters type |
09194-81 | 1 pkg | 675.00 | Buy |
| COSMOSIL CNT-300 Guard Column (10.0 mmI.D. x 50 mm) | End-Fitting: Waters type |
06551-81 | 1 pkg | 963.00 | Buy |
