DNA Ladder
Agarose gel electrophoresis
A unique combination of PCR products and a number of proprietary plasmids digested with appropriate restriction enzymes, suitable for use as molecular weight standards for agarose gel electrophoresis. We offer two types of DNA Ladders that are pre-mixed, ready-to-use molecular weight markers containing tracking dyes.
100 bp DNA Ladder (Ready-to-Use)
The DNA includes 12 fragments ranging from 100-3,000 base pairs. The 500 and 1,500 base pair bands have increased intensity to serve as reference points. The approximate mass of DNA in each band is provided (0.54 µg a load) for approximating the mass DNA in comparably intense sample of similar size.
| Range: | 100 - 3,000 bp |
|---|---|
| Number of bands: | 12 |
| Concentration: | 108 µg / ml |
| Package size: | 54 µg / 500 µl |
| Recommended load: | 5 µl / well Containing Orange G and Xylene Cyanol FF as tracking dyes. |
| Source: | PCR products and double-stranded DNA digested with appropriate restriction enzyme, are phenol extracted and equilibrated to 10 mM Tris-HCl (pH 8.0) and 10 mM EDTA. |
| Storage: | Store at 25°C for 6 months Store at 4°C for 12 months Store at -20°C for 24 months |

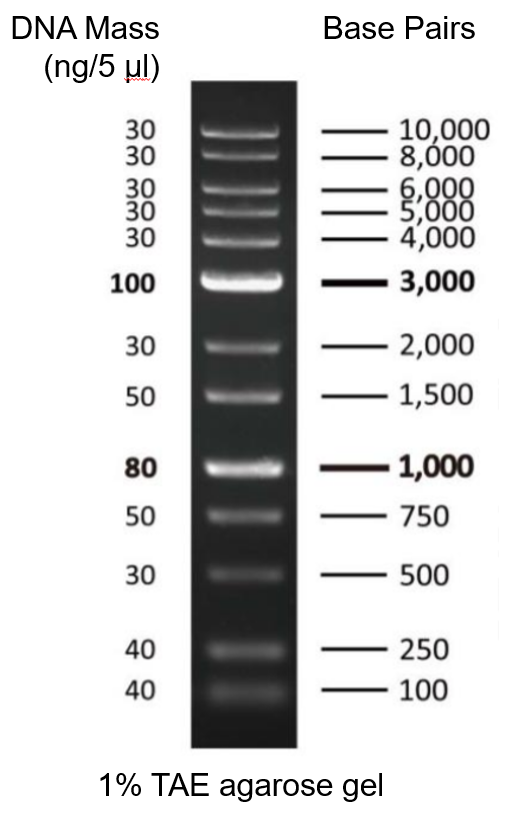

1 kb DNA Ladder (Ready-to-Use)
The DNA includes 13 fragments ranging from 100-10,000 base pairs. The 1,000 and 3,000 base pair bands have increased intensity to serve as reference points. The approximate mass of DNA in each band is provided (0.5 µg a load) for approximating the mass DNA in comparably intense sample of similar size.
.PNG)
| Range: | 100-10,000 bp |
|---|---|
| Number of bands: | 13 |
| Concentration: | 100 µg / ml |
| Package size: | 50 µg / 500 µl |
| Recommended load: | 5 µl / well Containing Bromophenol Blue and Xylene Cyanol FF as tracking dyes. |
| Source: | PCR products and double-stranded DNA digested with appropriate restriction enzyme are phenol extracted and equilibrated to 10 mM Tris-HCl (pH 8.0) and 10 mM EDTA. |
| Storage: | Store at 25°C for 6 months Store at 4°C for 12 months Store at -20°C for 24 months |
