SunArmor C18
Further Evolution of Surface Modification
Combination of novel end-capping reagent with an ethylene chain and sunniest end-capping leads a silica C18 column to be stable under pH12 condition. SunArmor C18 can be used at pH range of a mobile phase between 2 to 12. This is almost same durability to compare with a hybrid C18s column. Furthermore SunArmor C18 shows better shape for acidic, basic and metal chelating compounds than the other hybrid C18 because of little residual silanol groups.
| SunArmor C18 | |
|---|---|
| Average particle size | 3 µm, 5 µm |
| Average pore size | approx. 120Å |
| Specific surface area | approx. 340m2/g |
| Stationary phase | C18 |
| Carbon content | 17% |
| Use pH range | 2 - 12 |
| USP L No. | L1 |

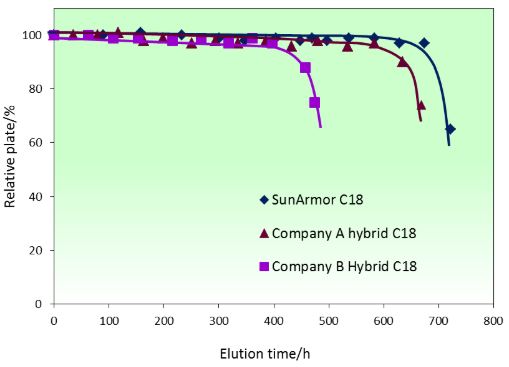

High durability under basic pH condition
SunArmor showed almost same durability or more to compare with the other hybrid C18 columns.
 |
Duration test condition Mobile phase: Methanol/10 mM Ammonium bicarbonate (pH 10.5, Adjust with ammonia water) = 30/70 Flow: 0.8 mL/min Temperature: 60 ºC Measurement condition Mobile phase: Acetonitrile / water = 60/40 Flow: 0.2 mL/min temperature: 60 ºC Sample: Butyl benzene |

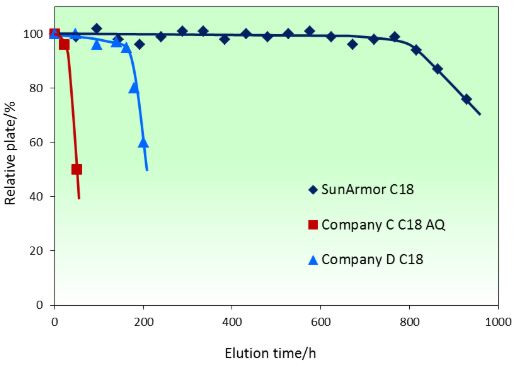

High durability under neutral pH and high temperature condition
SunArmor C18 showed much more durability under neutral pH and high temparature condition than the conventional C18 and AQ C18 columns.
 |
Duration test condition Column size: 50 x 2.1 mm Mobile phase: Methanol / 10 mM Ammonium acetate (pH 6.8) = 30/70 Flow: 0.2 mL/min temperature: 80 ºC Measurement conditions Mobile phase: Acetonitrile / water = 60/40 Flow: 0.2 mL/min temperature: 60 ºC Sample: Butyl benzene |

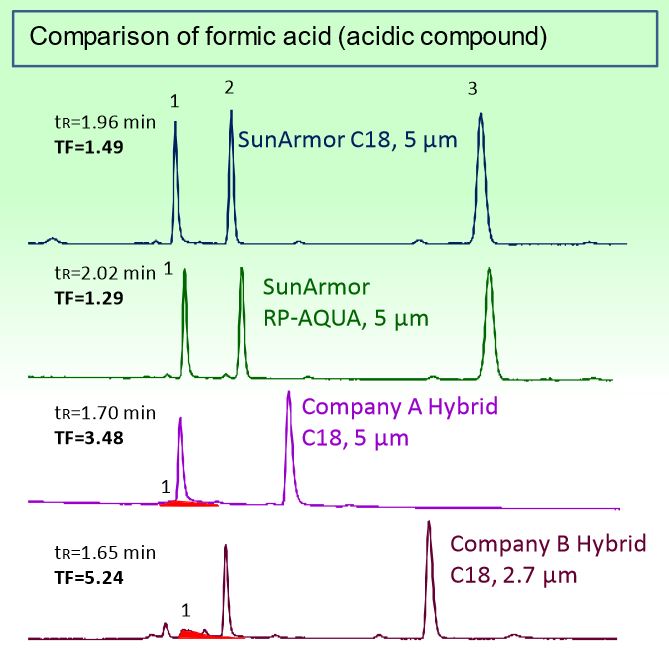

Sharp peak sharp in the acidic, basic and metal chelating compounds
|
< tR : retention time, TF : tailing factor > |
Condition (formic acid) Column dimension: 150 x 4.6 mm Mobile phase: CH3CN/0.1% H3PO4=2/98 Flow rate: 1.0 mL/min Temperature: 40 ºC Detection: UV 210 nm Sample: 1 = Formic acid 2 = Acetic acid 3 = Propionic Acid
* Hybrid C18s showed a very poor peak shape for formic acid. It is doubted that some amines as a byproduct remained on the surface of packing materials. |
|

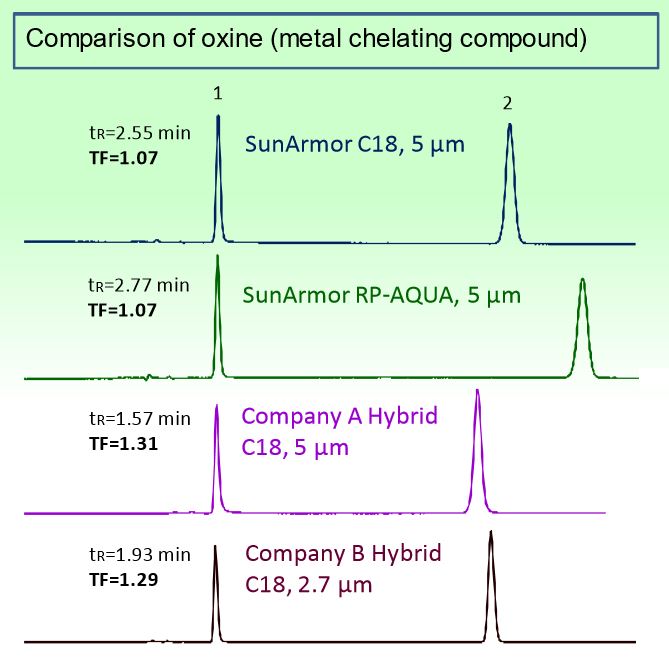

< tR : retention time, TF : tailing factor > |
Condition (oxine) Column dimension: 150 x 4.6 mm Flow rate: 1.0 mL/min Temperature: 40 ºC Detection: UV 250 nm Sample: 1 = 8-Quinolinol (Oxine) 2 = Caffeine |
Ordering Information
SunArmor C18
| Product | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|
| SunArmor C18, 3µm (2.0 mmID x 50 mm) | HB2241 | 1 pkg | 474.00 | Buy |
| SunArmor C18, 3µm (2.0 mmID x 75 mm) | HB2251 | 1 pkg | 504.00 | Buy |
| SunArmor C18, 3µm (2.0 mmID x 100 mm) | HB2261 | 1 pkg | 524.00 | Buy |
| SunArmor C18, 3µm (2.0 mmID x 150 mm) | HB2271 | 1 pkg | 575.00 | Buy |
| SunArmor C18, 3µm (3.0 mmID x 50 mm) | HB2341 | 1 pkg | 474.00 | Buy |
| SunArmor C18, 3µm (3.0 mmID x 100 mm) | HB2361 | 1 pkg | 524.00 | Buy |
| SunArmor C18, 3µm (3.0 mmID x 150 mm) | HB2371 | 1 pkg | 575.00 | Buy |
| SunArmor C18, 3µm (3.0 mmID x 250 mm) | HB2381 | 1 pkg | 676.00 | Buy |
| SunArmor C18, 3µm (4.6 mmID x 50 mm) | HB2441 | 1 pkg | 444.00 | Buy |
| SunArmor C18, 3µm (4.6 mmID x 100 mm) | HB2461 | 1 pkg | 504.00 | Buy |
| SunArmor C18, 3µm (4.6 mmID x 150 mm) | HB2471 | 1 pkg | 555.00 | Buy |
| SunArmor C18, 3µm (4.6 mmID x 250 mm) | HB2481 | 1 pkg | 676.00 | Buy |
| SunArmor C18, 5µm (2.0 mmID x 50 mm) | HB3241 | 1 pkg | 444.00 | Buy |
| SunArmor C18, 5µm (2.0 mmID x 100 mm) | HB3261 | 1 pkg | 504.00 | Buy |
| SunArmor C18, 5µm (2.0 mmID x 150 mm) | HB3271 | 1 pkg | 544.00 | Buy |
| SunArmor C18, 5µm (2.0 mmID x 250 mm) | HB3281 | 1 pkg | 635.00 | Buy |
| SunArmor C18, 5µm (3.0 mmID x 50 mm) | HB3341 | 1 pkg | 444.00 | Buy |
| SunArmor C18, 5µm (3.0 mmID x 100 mm) | HB3361 | 1 pkg | 504.00 | Buy |
| SunArmor C18, 5µm (3.0 mmID x 150 mm) | HB3371 | 1 pkg | 544.00 | Buy |
| SunArmor C18, 5µm (3.0 mmID x 250 mm) | HB3381 | 1 pkg | 635.00 | Buy |
| SunArmor C18, 5µm (4.6 mmID x 50 mm) | HB3441 | 1 pkg | 403.00 | Buy |
| SunArmor C18, 5µm (4.6 mmID x 100 mm) | HB3461 | 1 pkg | 454.00 | Buy |
| SunArmor C18, 5µm (4.6 mmID x 150 mm) | HB3471 | 1 pkg | 504.00 | Buy |
| SunArmor C18, 5µm (4.6 mmID x 250 mm) | HB3481 | 1 pkg | 565.00 | Buy |
| SunArmor C18, 5µm (10.0 mmID x 250 mm) | HB3781 | 1 pkg | 2,420.00 | Buy |
| SunArmor C18, 5µm (20.0 mmID x 100 mm) | HB3861 | 1 pkg | 2,567.00 | Buy |
| SunArmor C18, 5µm (20.0 mmID x 250 mm) | HB3881 | 1 pkg | 4,840.00 | Buy |
