SunShell PFP
SunShell HPLC columns are manufactured using innovative core shell particle technology that provides significantly increased column efficiency and chromatographic resolution without the high back pressure seen in sub-2 µm columns.
Features
- 2.6 µm core shell particle with 0.5 µm porous silica layer
- Provides the same high efficiency and high speed as sub-2 µm
- Less than half the backpressure of sub-2 µm
- Up to 100 times higher loading capacity compared to other core shell materials
- Improved pH stability from 1.0 to 10 (C18)
SunShell HPLC Columns are manufactured by ChromaNik Technologies, Inc.
Physical Characteristics
| Stationary Phase | Particle Size | Pore Size | Surface Area | Carbon Content | pH Range | |
|---|---|---|---|---|---|---|
| PFP | Pentafluoro-phenyl | 2.6 µm | 90Å | 150 m²/g | Approx. 4.5% | 2 - 8 |
Schematic of Diffusion Paths
2.6 µm core shell particle provides the same diffusion width as 2.0 µm totally porous particle.
for halogenated compounds and isomers
SunShell PFP (Pentafluorophenyl stationary phase) provides alternative selectivity to traditional reversed phase columns such as C18 and C8, particularly for halogenated compounds and structural isomers.

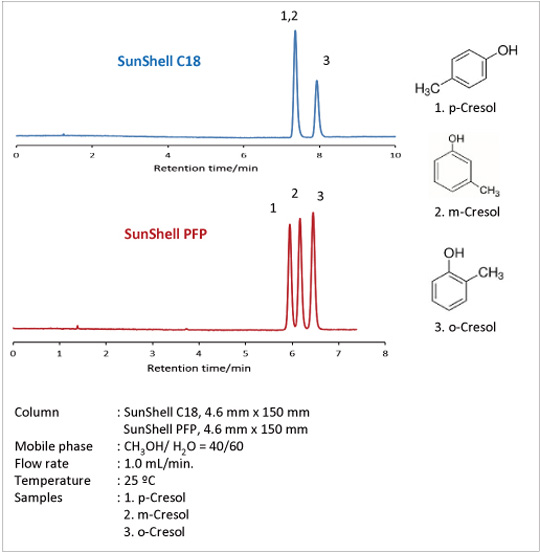

Application Data: Cresol isomers

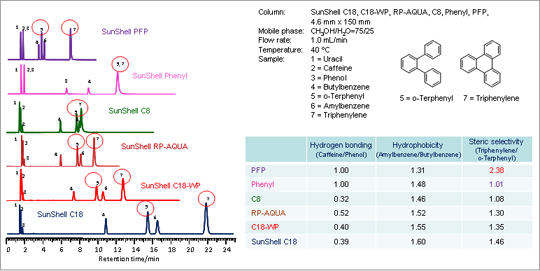

Separation of standard samples: PFP shows strong steric selectivity
Ordering Information
SunShell PFP
| Product | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|
| SunShell PFP, 2.6µm (2.1 mmID x 30 mm) | CF6931 | 1 pkg | 513.00 | Buy |
| SunShell PFP, 2.6µm (2.1 mmID x 50 mm) | CF6941 | 1 pkg | 523.00 | Buy |
| SunShell PFP, 2.6µm (2.1 mmID x 75 mm) | CF6951 | 1 pkg | 562.00 | Buy |
| SunShell PFP, 2.6µm (2.1 mmID x 100 mm) | CF6961 | 1 pkg | 627.00 | Buy |
| SunShell PFP, 2.6µm (2.1 mmID x 150 mm) | CF6971 | 1 pkg | 665.00 | Buy |
| SunShell PFP, 2.6µm (3.0 mmID x 30 mm) | CF6331 | 1 pkg | 513.00 | Buy |
| SunShell PFP, 2.6µm (3.0 mmID x 50 mm) | CF6341 | 1 pkg | 523.00 | Buy |
| SunShell PFP, 2.6µm (3.0 mmID x 75 mm) | CF6351 | 1 pkg | 562.00 | Buy |
| SunShell PFP, 2.6µm (3.0 mmID x 100 mm) | CF6361 | 1 pkg | 627.00 | Buy |
| SunShell PFP, 2.6µm (3.0 mmID x 150 mm) | CF6371 | 1 pkg | 665.00 | Buy |
| SunShell PFP, 2.6µm (4.6 mmID x 30 mm) | CF6431 | 1 pkg | 513.00 | Buy |
| SunShell PFP, 2.6µm (4.6 mmID x 50 mm) | CF6441 | 1 pkg | 523.00 | Buy |
| SunShell PFP, 2.6µm (4.6 mmID x 75 mm) | CF6451 | 1 pkg | 617.00 | Buy |
| SunShell PFP, 2.6µm (4.6 mmID x 100 mm) | CF6461 | 1 pkg | 688.00 | Buy |
| SunShell PFP, 2.6µm (4.6 mmID x 150 mm) | CF6471 | 1 pkg | 732.00 | Buy |
