SunShell RP-AQUA (160Å)
SunShell HPLC columns are manufactured using innovative core shell particle technology that provides significantly increased column efficiency and chromatographic resolution without the high back pressure seen in sub-2 µm columns.
Features
- 2.6 µm core shell particle with 0.5 µm porous silica layer
- Provides the same high efficiency and high speed as sub-2 µm
- Less than half the backpressure of sub-2 µm
- Up to 100 times higher loading capacity compared to other core shell materials
- Improved pH stability from 1.0 to 10 (C18)
SunShell HPLC Columns are manufactured by ChromaNik Technologies, Inc.
Physical Characteristics
| Stationary Phase | Particle Size | Pore Size | Surface Area | Carbon Content | pH Range | |
|---|---|---|---|---|---|---|
| RP-AQUA | C28 | 2.6 µm | 160Å | 90 m²/g | Approx. 4% | 2 - 8 |
Schematic of Diffusion Paths
2.6 µm core shell particle provides the same diffusion width as 2.0 µm totally porous particle.
for aqueous conditions
SunShell RP-AQUA is a reversed phase Core Shell column designed specifically for aqueous mobile phase conditions. It offers excellent retentions of polar compounds and superior reproducibility in 100 % aqueous mobile phase.

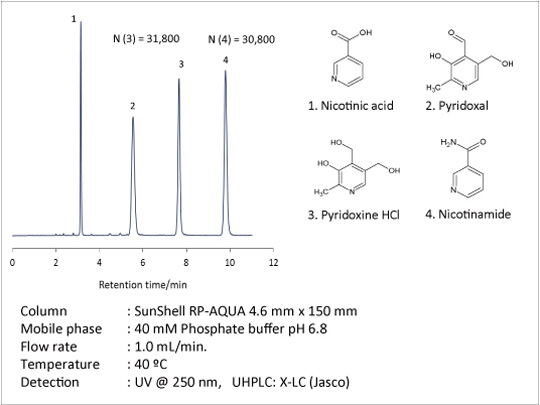

Application Data: Water-soluble vitamins

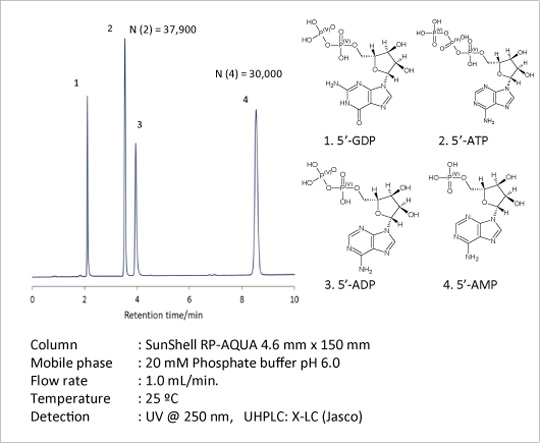

Application Data: Nucleotides
Ordering Information
SunShell RP-AQUA
| Product | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|
| SunShell RP-Aqua, 2.6µm (1.0 mmID x 50 mm) | CR6141 | 1 pkg | 647.00 | Buy |
| SunShell RP-Aqua, 2.6µm (1.0 mmID x 100 mm) | CR6161 | 1 pkg | 715.00 | Buy |
| SunShell RP-Aqua, 2.6µm (1.0 mmID x 150 mm) | CR6171 | 1 pkg | 755.00 | Buy |
| SunShell RP-Aqua, 2.6µm (2.1 mmID x 30 mm) | CR6931 | 1 pkg | 513.00 | Buy |
| SunShell RP-Aqua, 2.6µm (2.1 mmID x 50 mm) | CR6941 | 1 pkg | 523.00 | Buy |
| SunShell RP-Aqua, 2.6µm (2.1 mmID x 75 mm) | CR6951 | 1 pkg | 562.00 | Buy |
| SunShell RP-Aqua, 2.6µm (2.1 mmID x 100 mm) | CR6961 | 1 pkg | 627.00 | Buy |
| SunShell RP-Aqua, 2.6µm (2.1 mmID x 150 mm) | CR6971 | 1 pkg | 665.00 | Buy |
| SunShell RP-Aqua, 2.6µm (3.0 mmID x 30 mm) | CR6331 | 1 pkg | 513.00 | Buy |
| SunShell RP-Aqua, 2.6µm (3.0 mmID x 50 mm) | CR6341 | 1 pkg | 523.00 | Buy |
| SunShell RP-Aqua, 2.6µm (3.0 mmID x 75 mm) | CR6351 | 1 pkg | 562.00 | Buy |
| SunShell RP-Aqua, 2.6µm (3.0 mmID x 100 mm) | CR6361 | 1 pkg | 627.00 | Buy |
| SunShell RP-Aqua, 2.6µm (3.0 mmID x 150 mm) | CR6371 | 1 pkg | 665.00 | Buy |
| SunShell RP-Aqua, 2.6µm (4.6 mmID x 30 mm) | CR6431 | 1 pkg | 513.00 | Buy |
| SunShell RP-Aqua, 2.6µm (4.6 mmID x 50 mm) | CR6441 | 1 pkg | 523.00 | Buy |
| SunShell RP-Aqua, 2.6µm (4.6 mmID x 75 mm) | CR6451 | 1 pkg | 617.00 | Buy |
| SunShell RP-Aqua, 2.6µm (4.6 mmID x 100 mm) | CR6461 | 1 pkg | 688.00 | Buy |
| SunShell RP-Aqua, 2.6µm (4.6 mmID x 150 mm) | CR6471 | 1 pkg | 732.00 | Buy |
