SunShell C18-WP (160Å)
SunShell HPLC columns are manufactured using innovative core shell particle technology that provides significantly increased column efficiency and chromatographic resolution without the high back pressure seen in sub-2 µm columns.
Features
- 2.6 µm core shell particle with 0.5 µm porous silica layer
- Provides the same high efficiency and high speed as sub-2 µm
- Less than half the backpressure of sub-2 µm
- Up to 100 times higher loading capacity compared to other core shell materials
- Improved pH stability from 1.0 to 10 (C18)
SunShell HPLC Columns are manufactured by ChromaNik Technologies, Inc.
Physical Characteristics
| Stationary Phase | Particle Size | Pore Size | Surface Area | Carbon Content | pH Range | |
|---|---|---|---|---|---|---|
| C18-WP | C18 | 2.6 µm | 160Å | 90 m²/g | Approx. 5% | 1.5 - 10 |
Schematic of Diffusion Paths
2.6 µm core shell particle provides the same diffusion width as 2.0 µm totally porous particle.
for peptides and small proteins

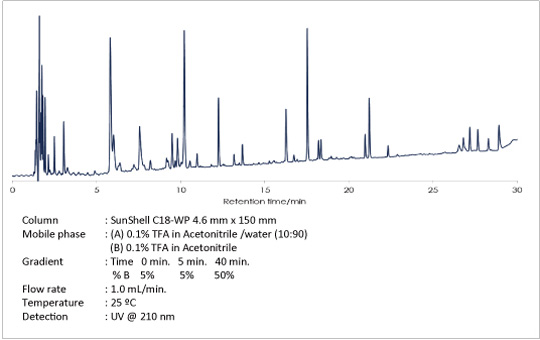

SunShell C18-WP Application Data: Tryptic digest of Myoglobin

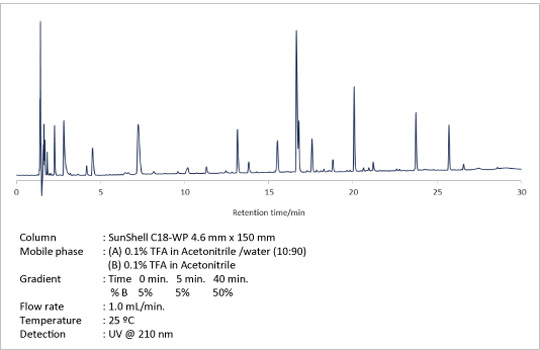

SunShell C18-WP Application Data: Tryptic digest of Cytochrome C
Ordering Information
SunShell C18-WP
| Product | Cat.No. | PKG Size | Price | |
|---|---|---|---|---|
| SunShell C18-WP, 2.6µm (2.1 mmID x 30 mm) | CW6931 | 1 pkg | 513.00 | Buy |
| SunShell C18-WP, 2.6µm (2.1 mmID x 50 mm) | CW6941 | 1 pkg | 523.00 | Buy |
| SunShell C18-WP, 2.6µm (2.1 mmID x 75 mm) | CW6951 | 1 pkg | 562.00 | Buy |
| SunShell C18-WP, 2.6µm (2.1 mmID x 100 mm) | CW6961 | 1 pkg | 627.00 | Buy |
| SunShell C18-WP, 2.6µm (2.1 mmID x 150 mm) | CW6971 | 1 pkg | 665.00 | Buy |
| SunShell C18-WP, 2.6µm (3.0 mmID x 30 mm) | CW6331 | 1 pkg | 513.00 | Buy |
| SunShell C18-WP, 2.6µm (3.0 mmID x 50 mm) | CW6341 | 1 pkg | 523.00 | Buy |
| SunShell C18-WP, 2.6µm (3.0 mmID x 75 mm) | CW6351 | 1 pkg | 562.00 | Buy |
| SunShell C18-WP, 2.6µm (3.0 mmID x 100 mm) | CW6361 | 1 pkg | 627.00 | Buy |
| SunShell C18-WP, 2.6µm (3.0 mmID x 150 mm) | CW6371 | 1 pkg | 665.00 | Buy |
| SunShell C18-WP, 2.6µm (4.6 mmID x 30 mm) | CW6431 | 1 pkg | 513.00 | Buy |
| SunShell C18-WP, 2.6µm (4.6 mmID x 50 mm) | CW6441 | 1 pkg | 523.00 | Buy |
| SunShell C18-WP, 2.6µm (4.6 mmID x 75 mm) | CW6451 | 1 pkg | 617.00 | Buy |
| SunShell C18-WP, 2.6µm (4.6 mmID x 100 mm) | CW6461 | 1 pkg | 688.00 | Buy |
| SunShell C18-WP, 2.6µm (4.6 mmID x 150 mm) | CW6471 | 1 pkg | 732.00 | Buy |
